Commercial Foundation Stabilization: Analyses, Designs, and also Permits

Commercial structures seldom stop working at one time. They whisper initially. A hairline crack responsible for a data closet, a stuck door in the packing gulf, a piece junction that grows a shade after rainfall. By the opportunity renters complain of steep floors or a window curtain wall shows a suspicious racking crack, the ground has actually normally been moving for years. Stablizing is less about heroics and also additional about disciplined analysis, sober layout, as well as allows that detail that is in charge of what. The projects that go properly discuss a style: very clear diagnostics, fit-for-purpose systems, as well as an installation strategy that appreciates the web site's restraints as high as the engineering math.

I have actually made and taken care of structural foundation repair work on healthcare facilities, records facilities, circulation pads, mid-rise apartments, as well as the weird century-old theater. The toolkit differs, but commercial foundation stabilization often tends to focus on micropiles, helical piles, protection stacks, and also helical tieback anchors. Each possesses its instant. The art lies in matching bunches as well as foundation repair near me grounds to the right body, at that point constructing it the means it was drawn.

How distress starts, as well as why it accelerates

Commercial structures stop working for expected main reasons: compressible stuffing that never connected with thickness, expansive clay-baseds that cycle with the seasons, superficial groundwater rising and fall along with irrigation or even roofing drain, as well as the cumulative effect of service loads that were underestimated or that transformed when the usage modified. The basics sound familiar, yet the patterns vary. A precast wall structure door moves load in different ways than a steel pillar with a base plate. A mat groundwork under a chiller garden endures in different ways than a strip ground under retail.

Distress seldom surfaces evenly. We often observe section negotiation on buildings with downspouts that concentrate discharge, or even tip cracking along CMU in a particular gulf that occurs to rest on a wallet of organics. When floor flatness endurances are actually strict, like in a high-bay warehouse with lift professional foundation repair services support, a quarter-inch of differential settlement deal turns up as functional discomfort. In a medical facility, also small structure movement can misalign image resolution tools or even interrupt isolation suites.

The trajectory matters. A split that finalizes seasonally may be swelling clay at work; a fracture that widens continuously over six months advises progressive bearing failing or debt consolidation. The distinction establishes whether you support at existing altitudes or even plan for airlift. Stabilization is hardly ever the most affordable line thing on a budget plan, but the price of living with movement in an office building, particularly one with delicate tools or stacked facades, often overshadows the fixing work.

Assessment that actually answers the question

A reputable assessment deals with three points: what foundation repair relocated, how much and just how swiftly, as well as why. Every thing else is sound. On a traditional task, our experts mix visual examination, floor elevation studies, snap mapping along with times, assessment of geotechnical borings, as well as in some cases brand new borings or even powerful conoid penetrometer soundings where the original document is without insurance coverage. Ground penetrating radar can easily assist identify electricals just before our experts pierce, as well as LIDAR or even electronic degrees offer a repeatable elevation baseline. I such as to repeat the flooring study after a rain event or in the end of summer season in extensive clay-based locations. Activity that connects with moisture is actually a solid clue.

Structural evaluation rounds out the picture. Our company examine lots courses as well as lots blends. If the building included a roof device, heavy wrenching, or even a mezzanine, the dirt may be taking much more than the first concept planned. Slab junctions along with differential curvature, misaligned dock doors, or a spandrel light beam that squeezes the brick can easily map the settlement deal profile nearly as accurately as an instrumented study. With gaps, size and also constancy concern much more than plain visibility. A solitary 1/8 inch vertical gap in a cement wall might be actually propitious contraction. A set of expanding stair-step splits through CMU that line up with a column framework is actually knowing you a ground sank.

The most expensive oversight in commercial foundation repair is actually bypassing dirt proof. If existing borings are years aged or perform not cover the distressed zone, acquire at the very least a number of targeted borings or soundings. At one warehouse near the riverfront, initial borings showed competent sand at 8 to 12 feet. Our brand-new probe uncovered a lense of soft silt extending to 20 shoes along one wall structure. The helical piles sized coming from the old data would certainly possess stalled early. Our company changed to micropiles socketed into heavy strata at 28 feets and also saved full weeks of rework.

Choosing the best system: helical, protection, or even mini pile

The principal family members of deep foundation repair components share the same purpose: transmission lots past weak soils right into skilled strata. Each performs it differently.

Helical stacks are actually steel arrows along with one or more helical plates that screw into the dirt. They shine in lumpy or even cohesive dirts where twist associates to size. Installment is actually fast, resonance is low, and the tools impact is actually tiny enough to work inside finished areas. In commercial helical pile installation, our company usually select square shaft for higher tension or even lateral demands, or even pipe shaft for compressive capacity under massive pillars. If twist analyses track the style model and also our company stay clear of blockages, helical piles deliver foreseeable results as well as are actually best for including ability to light to mid-weight establishments or for piece assistance with tiny heads.

Resistance piles, often named press piers or mounted stacks, count on the property's personal body weight to press steel pipeline portions to refusal. They may be exceptional for founding when the building possesses good enough mass. The installation is actually quiet, and the mounting body offers crystal clear records on disk stress and seats. We make use of commercial resistance pile installation where get access to is actually constrained as well as where our company wish to regulate lift in little increments. However, in very light properties or even zones along with limited reaction, protection heaps can slow prior to connecting with target capacities.

Micropiles are small-diameter pierced as well as grouted heaps along with steel support, either pub or even covering. They are actually the chameleons of deep foundation repair. By bonding right into qualified strata, micropiles cultivate ability by means of grout-to-ground friction as well foundation repairs near me as end-bearing if you hit stone. They endure cobbles and obstructions far better than helical piles as well as can easily reach terrific depths where dirts require it. Micropiles perform in both compression as well as stress along with higher capabilities for their dimension, that makes them preferences under heavy column tons or even where sidewise needs pair with axial resistance, as in seismic retrofits. Commercial micro pile installation requires careful sequencing: boring along with casing or even open-hole depending on dirt reliability, tremie grouting, as well as verification screening to confirm connection stamina. In tight websites with hefty tons, micropiles are actually typically the correct response even though device expense manages higher.

Helical tieback anchors extend the helical idea right into stress assistance. Installed horizontally or at an angle, they avoid side ground pressure on basement wall surfaces and keeping constructs. When our company manage commercial helical tieback anchor installation, our company check out support spacing, connection spans, as well as wall surface birth control hardness. Tiebacks really want one thing tight to take against. Without a qualified waler or even framing, the support can easily gain the fight and lose the war through obliterating a poor wall surface door. Conventional tieback anchors, whether helical anchors or grouted bars, need to be actually proof examined as well as locked off effectively. Records of exam loads as well as lockoff stress becomes part of the buy package and also, much more notably, a security assurance.

Matching the body to the structure as well as the soil

Loads as well as grounds drive the selection, however thus carry out coordinations and also the owner's priorities. In an active medical center corridor with reduced limits for sound and also resonance, helical piles or micropiles with a soundless rig matter. In an information facility, electromagnetic disturbance coming from set up tools is actually a dialogue place. For a more mature block façade, controlling lift is as important as final altitude, since also a quarter-inch of quick modification can easily telegraph through breakable stonework. You perform not elevate a famous wall structure the technique you would certainly a tilt-up panel.

I start along with the minimal feasible treatment that can stop motion and regain capacity. That might indicate a handful of helical piles under a working out step tower. If the harm is widespread or if the use requires degree tolerances, our company plan for mounting and slab re-leveling, typically with a hybrid approach: deep heaps under columns, particular support under wall structure sections, as well as polyurethane or even cementitious cement under slabs. The mix keeps spending plans logical and stays away from spending too much on rigidity where it performs not buy performance.

For groundworks beside electricals or even in stuffing filled along with building and construction fragments, micropiles reduce the risk listing. I have checked out helical pile staffs devote half a day battling rebar mats, outdated concrete, as well as unexplored conduits, then pivot properly to micropiles and also complete the region precisely. The opposite likewise occurs: helical piles inside a retail area along with ceramic tile may support a dividers wall structure just before a shop opens up, with dirt management and also low disruption.

Designing for efficiency, certainly not only capacity

Any deep foundation repair concept ought to answer three inquiries accurately. Exactly how will the brand new aspects discuss lots with the existing groundwork? Just how will motion be handled throughout and also after installment? Exactly how will we verify that the system attained the designated functionality? If those responses stay merely in an estimate package as well as not in the drawings or specifications, area crews are entrusted to guess.

Underpinning braces deserve focus. The bracket hooks up the new pile to the aged structure. Misfit brackets, poor bearing preparation, or mediocre welding can undermine the most effective heap. When our team specify braces, our experts straighten them along with true footing measurements, rebar deepness, and also wall surface geometry located in the field. An information that asks for a 12 inch embed on a ground with top pubs at 8 inches of cover will certainly either cut pubs or trigger an RFI as well as a field redesign. Neither is actually excellent. Our company also detail mounting series and optimum airlift every cycle, typically approximately 1/8 inch at a time, with stops briefly to let the establishment breathe.

Displacement command matters as much as best ability. A stockroom slab assisted through helical piles can still throw if the stack heads are actually certainly not latched to a rigid load transfer shaft. Too much spacing or even a pliable spreader produces aspect lots as well as curvature pockets. In grouted bodies, connection sizes must being in skilled dirts. Concept values for grout-to-ground friction depend on verified dirt lessons, certainly not universal tables. Where soils are actually combined or even changeable, we include test anchors and creation verification tests as well as organize the schedule to get and also analyze those results just before ending up the run.

Lateral tons is actually the peaceful assassin of lots of repair work jobs. Stacks that deal with vertical lots may still totter under seismic shear or vehicle impact. Where maintaining walls or even basement wall surfaces head, tieback anchors help, however the wall surface must have the birth control and also support to transfer loads. Occasionally we add shotcrete with dowels to stabilize a wall surface prior to securing. Other opportunities the sensible option is actually to excavate, alleviate pressure, water resistant, as well as restore with a brand-new wall surface as well as tiebacks. That is actually a bigger scope, yet in a high-value residential property it protects against a cycle of patching.

Permitting and approvals: what evaluators truly want

Commercial groundwork stablizing touches building protection and also, frequently, shoring and also digging. Planning consumers normally seek a covered layout by a registered qualified engineer, geotechnical context, computations that match what is drawn, and a crystal clear summary of the installation as well as testing system. They care much less about lustrous item sheets than concerning exactly how the system acts in your dirt with your lots. If you specify helical piles, consist of assumed coil configurations, torque-to-capacity connections, as well as recognition requirements for refusal. For micropiles, determine grout durability, connection length beliefs, canvassing information, as well as testing.

Construction influences drive license disorders. Inside job may be excluded coming from full web site growth review, yet if excavation crosses property lines or even overreach public space, you need to have right-of-way authorizations as well as traffic light. Tieback anchors that extend past home lines right into a next-door neighbor's soil demand created easements. I have actually observed ventures delay for months since the layout asked for helical tiebacks around a whole lot line without early discussions. That is actually a phone call to the next-door neighbor's guidance you intend to make in illustrative style, certainly not during mobilization.

Special inspections and area reports concrete rely on. Many legal systems require special assessment for deep structure components, specifically where capability is actually presumed coming from torque or even hoisting tension. The unique assessor reports load sites, lengths, twist, pressure, and exam results. Our team also submit as-builts that present ultimate altitudes, lock-off pressures, as well as any discrepancies. When our experts seek a certification of settlement on a repaired place, that paperwork speeds approvals given that it answers the inquiries an engineer in the structure department would certainly ask.

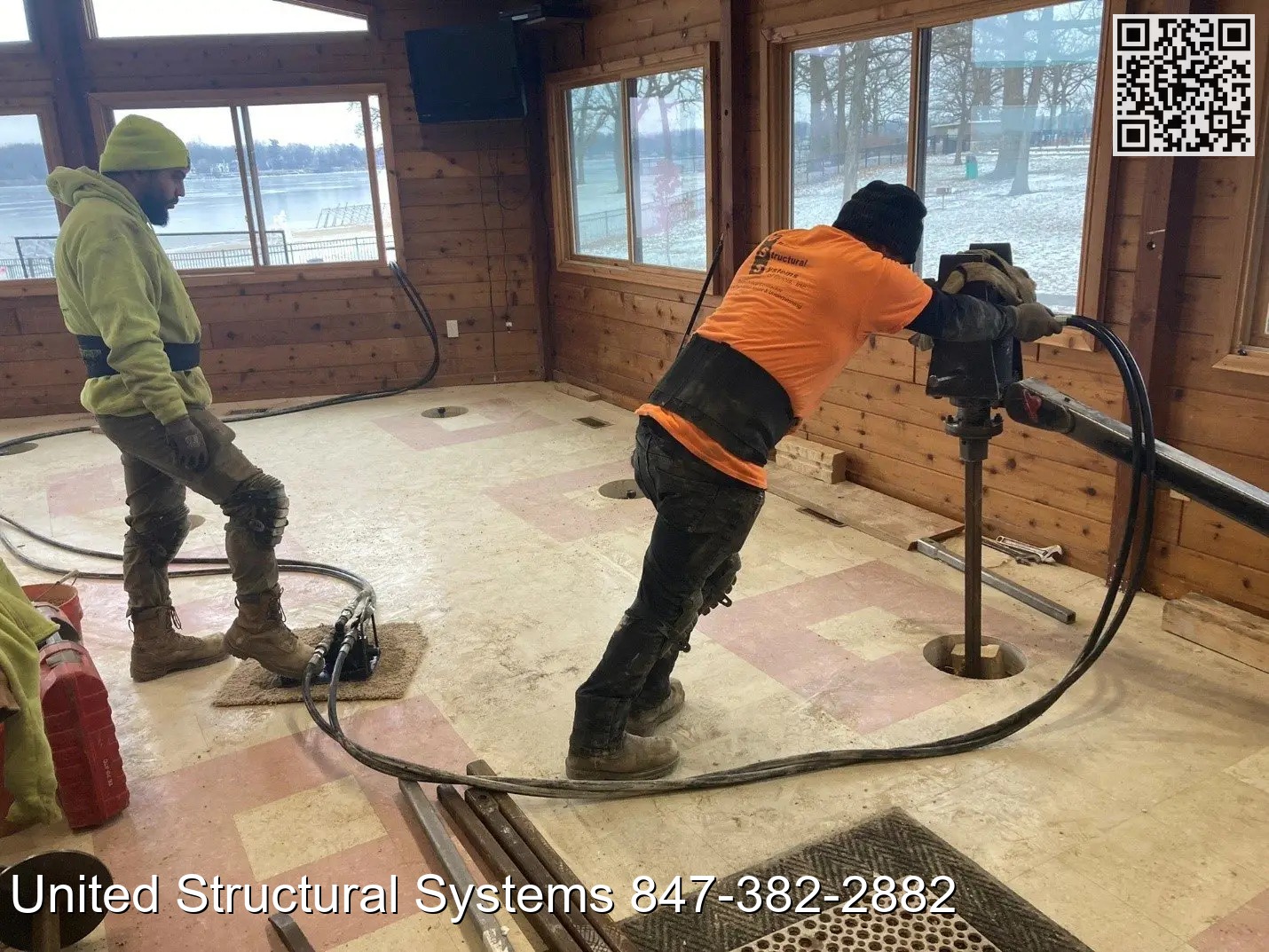

Commercial helical pile installation: what great appeals like

On a mid-rise workplace retrofit, our company added helical piles along a settling façade where clay-based lens rotated along with stiff silt. Our company set up compact push heads on low-clearance rigs, cored by means of the piece, and also advanced square stem extensions along with a 10-12 top. Real-time twist analyses were our map. When torque went up steadily to the target over the ultimate 2 to 3 feet, our experts logged size, reduced the shafts, and installed brackets under the grade beam. Where torque increased early because of obstructions, our team changed laterally by 12 to 18 inches as well as made an effort once again instead of brute-forcing through a hidden portion of concrete.

Quality appears in the log manual. Load number, place, lead setup, twist at each deepness, refusal criteria, and also final altitude ought to be tape-recorded and cross-referenced to a planning. The staff main keeps a managing tally of anticipated versus actual spans to expect materials requirements. Dust management, debris removal, and also piece repair work matter to renters. Our experts arranged noisy exercises after hrs, developed restriction, and also left clean floors along with patched centers. That is not fluff. In commercial work, coming back an area to company swiftly becomes part of the deliverable.

Commercial resistance pile setup: when property mass aids you

We utilized resistance heaps to underpin a cinema's brick façade where internal coatings averted hefty gears. The property mass, brick plus steel trusses, offered the response required. After digging deep into along the footing and putting in brackets, we mounted water pipes portions to rejection, kept track of tension, and after that elevated the define little increments. Real-time surveillance inside the theater tracked paste breaking. Our company limited lift per pattern and also cut short of chasing after perfectness. Famous stonework prefers sluggish, predisposed modification and long-term reliability over sudden adjustments. We at that point stitched splits and also re-pointed the mortar, confident that activity was arrested.

Resistance piles problem in lightweight buildings or even where the footing has insufficient bearing location to stand up to the mounting reaction. In those cases, a short-lived hydraulic framework or a different system is actually a lot better. The well-maintained portion of protection heaps is the instant comments from jacking. Pressures as well as seating correlate to capacity. The high-risk component is the temptation to over-lift. We compose the optimum allowed lift as well as the grip opportunities in to the method declaration, then execute it in the field.

Commercial micro pile setup: deep-seated capability in limited places

At a data center growth, the power generator garden needed brand new assistance, however energies crisscrossed the impact. We picked micropiles given that our experts can guide in between powers, punch by means of crushed rock as well as cobble, as well as obtain high capacities without vibration. Drilling along with brief casing prevented hole failure. We tremie grouted coming from the tip up, at that point set up centralizers and also pubs, and also ultimately topped along with a pile hat that linked right into the existing floor covering. Lots exams confirmed connect stamina in the lesser sand level and also permitted our team to lessen connect sizes a little throughout the site, sparing opportunity and grout.

Micropiles require additional create than helical or even protection stacks. Cement batching, pressure management, and mess up control demand style. The payoff is adaptability. If we hit a blockage, our experts may shift bit types. If groundwater intrudes, our company may adapt to double-casing. Micropiles additionally radiate in seismic upgrades. Their hardness and also stress capacity let our team incorporate each vertical and also sidewise resistance at pillars as well as shear walls without enormous structures. The cost per heap is often much higher, yet when you tally stayed away from problems as well as far fewer modification orders, the total task price carries its own own.

Helical tieback anchors and also keeping wall structures that keep put

Basement wall surfaces that bow inward typically owe their condition to outside water, bad backfill, and also opportunity. Repair choices variety coming from carbon dioxide fiber as well as soldier beam of lights to complete rebuilds along with basement waterproofing as well as drainage. When the wall structure is actually audio however needs to have reinforcement, helical tieback anchors can easily bring back capability. Business helical tieback installment begins along with format and also as-built confirmation. We set up anchors at a slight down angle, drive to twist that relates create pressure, proof test to an indicated multiple of company bunch, as well as latch off at the necessary tension. A continual waler circulates the lots along the wall surface, and internal surfaces are actually patched.

Tiebacks operate merely as part of an unit. Our experts take care of drainage with outside membrane layers, drain panels, and also a functioning ejection road. Without alleviating hydrostatic stress, even a well-anchored wall structure resides a difficult life. Information again matters: exam logs, lock-off tensions, as well as as-builts provide managers and insurance firms self-confidence that the wall structure will certainly remain put.

Integrating structural repair work with coatings as well as operations

Commercial jobs live in the real life. Occupants need gain access to, stock flows, patients require peaceful. Sequencing and also security frequently bring in or break timetables. In a supermarket stabilization, we performed operate overnight, separated bays with short-term dividers, as well as collaborated distributions to stay away from blocking out chilling lines. The design permitted predisposed base, thus places can open as our experts relocated. Under slabs, our experts jogged helical piles with saw-cut openings, then made use of fast-setting cement to spot. Shelving returned to spot through sunrise.

Straightening designs is actually alluring, however use awaits more. We raise simply as high as the finishes and also structure can easily accept, then switch remaining slopes along with self-leveling underlayment or even grinding. Splits acquire prioritized: building splits receive epoxy treatment as well as support; cosmetic splits wait until activity maintains. Foundation crack repair is not practically shutting a space, it has to do with removing the trigger. When proprietors drive to correct coating just before stablizing, we discuss the cycle of rework and settle on a sensible sequence.

Costs, routines, and what travels both

Owners usually request for ballpark costs. It is reasonable to give variations while clarifying the vehicle drivers. Helical piles can range from a number of hundred to a couple of 1000 bucks every stack relying on span, get access to, as well as bracket type. Micropiles typically set you back additional per aspect, specifically along with case as well as testing, however may bring higher lots so you need to have less. Resistance heaps sit in between. Tieback anchors consist of screening time, which adds to routine yet is actually hardly ever optional.

Schedules hinge on get access to, permitting, screening, and material lead times. A job along with interior job and no excavation can scoot once layouts are authorized. Include right-of-way permits, soil export, and also easements for tiebacks, and also the timeline grows. The one bar that continually shortens schedules is actually very early ground verification. Shocks diminish when brand-new borings or even soundings help the concept as opposed to aged reports.

Documentation that gains approvals and also trust

The best closeout deals consist of 5 points:

A stamped set of drawings and also estimations that match what was actually constructed, along with any field adjustments overshadowed and noted. Pile and also support logs noting areas, spans, twist or tension records, exam outcomes, and also lock-off values. As-built program revealing component collaborates, last altitudes, and also referral benchmarks. Special inspection records as well as cement or grout strength exam rests, referenced to pours. A maintenance and also surveillance strategy, consisting of encouraged follow-up elevation polls or anchor retensioning intervals if applicable.

Owners cherish clearness regarding use. Our company define residual inclines after airlift, prepared for periodic activity assortments, and where to see. In mission-critical amenities, our experts often leave tell-tales or even install simple monitoring aspects for workers to check.

Common mistakes and exactly how to prevent them

The same mistakes repeat. Styles that dismiss side load or even tieback space strain walls. Presumptions about soil without confirmation cause underperforming bodies. Rushing with bracket prepare leaves behind uneven bearing that slips under bunch. Lifting also prompt problems breakable surfaces and deteriorates owner self-confidence. Enables that forget elbowing in tiebacks invite lawful battles. Each pitfall is preventable with a moderate expenditure in examination, interaction, and also industry discipline.

Coordination one of architectural, geotechnical, as well as professional crews minimizes surprises. A thirty minutes preconstruction walk with the superintendent, the task engineer, as well as the special inspector can easily capture half the issues that derail a time. Straightforward guidelines help: validate energies, validate brace matches along with reinforcement, set out heap sites and also symbol no-drill zones, stage spoils and also cement restriction, and established for examination piles or even anchors early.

Where each system shines

Owners and also amenities supervisors often ask for a simple comparison when choosing between micropiles, helical piles, resistance heaps, and also tiebacks. It is worth summarizing the sweet areas without making believe that people size accommodates all.

Helical piles tend to become the fastest and also least disruptive for light to mild lots, internal job, and sites where torque-to-capacity relationships are actually trustworthy. They function well for slab and quality beam base and also for helical anchors in strain applications.

Resistance heaps match properties with enough mass for response and where measured lift is actually a priority. They are actually peaceful as well as predictable in founding under wall surfaces and columns, particularly in constricted access.

Micropiles succeed under hefty weights, in debris-laden loads, where depth to experienced strata is actually sizable or changeable, as well as in seismic retrofits. They manage each compression and pressure along with high abilities and use steering choices around obstructions.

Helical tieback anchors and grouted tiebacks support basement and preserving wall structures where lateral the planet tension drives action. They call for sufficient wall surface hardness as well as evidence screening to verify performance.

The long view: stablizing as risk management

Commercial groundwork stabilization is actually certainly not merely a repair, it is actually danger management. Flourished, it shields the building, the company, and continuous functions. It likewise produces a file that journeys along with the building. When a purchaser, lender, or even insurance provider assessments your structure, a well thought-out stablizing plan with clear examinations, well-argued styles, as well as tidy authorizations indicators stewardship.

The field maintains introducing. Monitoring tech makes elevation surveys quicker, cement mixes enhance connect and also early durability, and also installment gear shrinks while getting twist. Yet the essentials do certainly not transform. The guideline the property. Listen closely to it along with proper examination, answer along with systems that match the soil as well as the lots, and also chronicle the work so any person can find what was done and also why. Whether you opt for helical piles, protection heaps, micropiles, or even tieback anchors, the appropriate plan, tested in the business as well as caught on paper, is what stabilizes much more than groundworks. It supports decisions.
